What are the similarities and differences between screw palm oil press and double screw palm oil press?

 1. Same screw material

Single screw and double screw oil extractor screw are using 2CR13, wear-resistant alloy steel, one-piece casting process.

2. Same residual oil rate

Both types of machine have been tested many times, low residual oil rate, and ensure the integrity of the nuclear. Because if the core is damaged, there could be palm kernel oil production. Palm oil and palm kernel oil are two completely different oils that, when mixed together at random, are called “Gutter oil,” so nuclear integrity is important, and both types of machines guarantee the quality of the oil.

3. Same manufacturer

Both machines are manufactured by Doing Holdings factory.

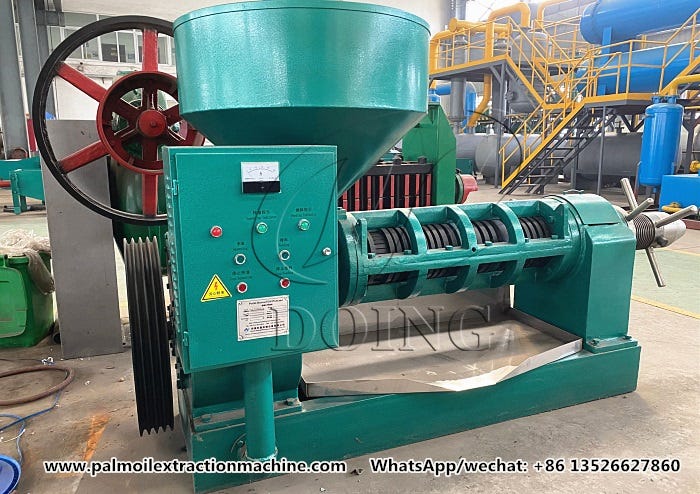

                                                 Screw palm oil press and double screw palm oil press in our factory



 1. Different processing capacity

In fact, the processing capacity of a 1T/H double screw oil press can reach 1-2 tons, while a 500kg/H single screw oil press can reach up to 500 kg. Purchase a 1T/H double screw oil press for post-processing it can continue to be used when the volume reaches 2 tons, and this machine can be used not only as a stand-alone machine, but also with a production line.

2. Different machine design and structure

The 500kg/H single screw oil press mainly has a main engine + power system. The main engine includes a screw press, a press chamber, a spring, and a cake cone. The main engine + power system + gear box + hydraulic cylinder of the 1T/H double screw oil press, two cake cones, and a hydraulic pump. The tail of the 1T/H double-screw oil press is equipped with a gear box combined with a hydraulic pump station to drive the two screw presses to rotate relative to each other to bite the mixing blades and output oil. The oil rate is lower, it is less likely to be blocked, and it is more labor-saving, which is more conducive to the smoothness of palm fruit pressing, improves the oil yield, and ensures your high income.

First of all, the material surface of the internal screw is smoother, and the double screw is upgraded from the single screw. The two opposing screw shafts of the snail are used to mesh with each other in the press chamber to generate a continuous pushing force to squeeze and cooperate with the press cage to squeeze out the grease in the embryo. The design of the double helix structure allows the machine to obtain strong radial pressure, so that the oil can be pressed as much as possible, and the pressing is more thorough, and the residual oil rate of the dry cake is lower than that of the single screw oil press.

3. The amount of steel used is different

The overall steel consumption of 1T/H double screw palm oil press is more than 500 kg, the motor of 500kg/H single screw oil press is 4KW, and the motor of 1T/H double screw oil press is 7.5 KW, the manufacturing cost is naturally higher.

4. The details are different

Pressure regulating equipment, 1T/H double screw oil press, equipped with hydraulic pump station (pressure is 100Mpa) and hydraulic cylinder, the pressure can reach 1-2 tons, the pressure of hydraulic pump is 100Mpa, The 500kg/H single screw oil press uses a spring to adjust the pressure, and the pressure provided is less than that of the hydraulic pump station, and the hydraulic pump station is more expensive and more expensive. The hydraulic pump station has an automatic control lever, the main purpose is to achieve a more powerful and stable operation of the oil press when the palm fruit is pressed, and the pressing effect is better. Compared with the manual adjustment of the spring pressure of a 500kg/H single screw oil press, the operation is simpler and more stable, and the hydraulic pump station can detect the pressure in the chamber in real time and adjust it in time.



If you are interested in these machines, welcome to contact us:

WhatsApp/wechat/Mobile: 008613526627860

Email: palmoil@doingmachinery.com
    http://www.palmoilextractionmachine.com

 http://www.palmoilprocessingmachine.com

Which crude edible oil can be refined by cooking oil refining machine? What are the refining steps of edible oil?

 As we all know, crude oil comes from oil crops or animals.

Commonly available on the market are soybean oil, peanut oil, sunflower oil, palm oil, olive oil, sesame oil, rapeseed oil, walnut oil, corn germ oil, linseed oil, castor oil, safflower oil, rice bran oil , lard and so on. These kinds of crude oils on the market all can be refined by the Oil Refining Equipment by our Glory Oil & Fats Engineering Co., Ltd, the effiect of refined are very good.

The refining process generally includes four steps: degumming, deacidification, decolorization, and deodorization．

Crude oil refining process

Degumming is the removal of phospholipids in crude oil. These impurities will not only damage the stability of oil storage, but also affect subsequent refining steps, so they are removed first.

Unrefined crude oil contains free fatty acids, which will make the oil easily rancid, so it needs to be deacidified to remove free fatty acids. Add alkali (sodium hydroxide NaOH) to produce soapstock through the saponification reaction to remove acidic substances in the oil. The soapstock will also absorb other suspended impurities and remove them.

Add activated clay or activated carbon for decolorization to absorb and remove the pigments in the oil. One can make the oil sell in line with consumers’ preferences, and the other can extend the shelf life of oil products.

Deodorization uses low-pressure vacuum heating and hot steam to remove odor molecules in oil to achieve deodorization effect.

If you are interested in oil equipment or want to press oil or refine refined oil, you can contact us at any time. We will try our best to give you the best solution.

WhatsApp/wechat/Mobile: 008613526627860
Email: market@doingoilmachine.com
http://www.edibleoilrefinerymachine.com

http://www.cookingoilmillmachinery.com

What factors need to be considered when configuring palm kernel oil processing machine?



When you are considering the purchase of palm kernel oil processing machine, the following points must be taken into consideration in your initial process.

The first thing you need to consider is the raw materials, whether your materials are in the shell or without shell, because the kernel with shell cannot be pressed directly, you need to use the shell cracker machine to peel off the shell and get the palm kernel, which can be directly pressed into the oil press. Our minimum capacity cracker is 1–2 tons of shelled palm kernels per hour. For more than 2 tons, it is recommended to use our independent research and development kernel separation system, which has a higher hulling rate and better efficiency. Suitable for medium and large industries.

Palm kernel cracking and separating system

Secondly, palm kernel is very hard, therefore in the purchase of oil press machine must choose good quality, large-scale business company, later guaranteed. The processing capacity of our palm kernel pressing machine is 500kg per hour. According to our engineers’ experiments, 500kg per hour is the most suitable processing capacity for palm kernel oil production. Our main vulnerable parts material is 45 steel, some on the market is ordinary carbon steel, short service life, not durable, it does not take long to push the material, delay business and destroy the machine. Special attention should be paid to the power of the machine here. In order to ensure the stable work of the oil press, we use a electricity to start. If the local voltage is unstable, you are not advised to buy this machine.

Palm kernel oil press machine

Finally, if you’re looking for a better quality palm kernel oil, you can use a plate filter to filter the impurities in the oil, improving the quality of the oil and increasing the storage time.

Plate and frame filter

If you are interested in palm kernel oil processing project, welcome to contact us :

WhatsApp/wechat/Mobile: 008613526627860
Email: palmoil@doingmachinery.com
https://www.palmoilextractionmachine.com

http://www.palmoilprocessingmachine.com

Nigerian customer orders a diesel model palm oil press from Henan Glory Company

On December 20th, a customer from the United States purchased a diesel-engined 500kg/h palm oil press from Henan Glory Company. The customer requested that the goods be directly transported to Nigeria, and his brother was in charge of palm oil management in Nigeria. Business.

This customer is an inquiry on 12.10, and the inquiry content is that a small single machine is required for transportation to Nigeria. After communication, send a screenshot of our product website, confirm that he wants a small stand-alone diesel engine, tell him the price, say he wants a discount, and tell him there is a Christmas discount, but the discount price is valid for one week. The customer said that he could pay within a week and gave him a 3% discount. Later, because the customer could not clear the customs, he consulted the freight forwarder for him, and the freight forwarder cleared the customs for him and solved his problem. The customer and his brother bought the machine in partnership, and each paid half of the price. Later, I got the contact information of the customer's brother to communicate about payment issues. Finally, I received the customer's payment on December 20th. The customer is very satisfied with our service, and the customer obviously has done a survey, otherwise the demand will not be so clear. This customer has also consulted our tapioca equipment before and has a certain understanding of our company. So this transaction went smoothly. To a large extent, it depends on the customer's recognition of our company's strength and our timely solution to the customer's problems.

As an experienced grease equipment manufacturer, we meet the different needs of customers and solve various problems encountered by customers. If you have any questions about grease equipment, please consult us.

WhatsApp/wechat/Mobile: 008613526627860
Email: palmoil@doingmachinery.com
https://www.palmoilextractionmachine.com

http://www.palmoilprocessingmachine.com

How much does it cost to buy a palm oil press machine and how soon can I make my investment cost back?

We have been in the production of palm pressing machine for more than ten years. It’s the highest standard in the industry, strict quality control, best-selling in more than 90 countries and regions. The configuration of our oil presser is determined according to the amount of raw materials handled per hour. Prices range from $1,450 to $29,000 for a single machine.

From the perspective of profit and return, take our current hot selling 500kg/h palm oil presser as an example, from the material is 2Cr13, wear-resistant alloy steel, integrated casting process, wear-resistant durable. Two power systems, diesel and electricity, meet the power needs of different regions.

500kg/h palm oil presser

This oil press is our minimum processing capacity, can process 500 kg palm fruit per hour, about 100 kg palm oil. Based on the price of materials in the local market of Nigeria:

The price of fruit bunches is 0.13 per kilogram

The price of crude oil is 0.77 per kilogram

The price of the kernel is 0.24 per kilogram

Working 10 hours a day, 5ton of fruit bunches will be needed *0.13/kg=$650, you can get about 1ton of palm oil * 0.77/kg=$770 profit from selling crude oil + 5ton fruit bunches can get 650kg kernel *$0.24/kg=$156

Subtracted the cost of the bunches, that’s $276 per day. The machine costs $1,550, so it takes 5.6 days to get your money back.
